The basic building block of data and telegraph signalling is the bit, a word derived from “binary digit”, so called because it can assume only two states, “Current” (logical “1”, Mark or lower frequency, positive voltage)  or “No Current” (logical “0”, Space or high frequency, negative voltage).

The bit rate is the number of bits transmitted per second, measured in bps.

One or more bits can be merged into a single signaling unit called a symbol.

The symbol rate formerly known as the telegraph speed or the baud rate is the inverse of the duration of one single signaling unit and is measured in symbols/sec or Baud (Bd). So if one channel signaling unit has a duration of 10 ms, then the telegraph speed is equal to 1/0.01 = 100 Bd. If the channel has only two signaling states, e.g., 0 V and +5 V, bit rate is equal to baud rate, i.e., 100 bps. If four levels were used, the baud rate would still be 100 Bd, but now the bit rate would be doubled to 200 bps, each baud representing two bits.

Signaling states identify the different values a signaling unit may assume. In case of binary signaling there are two states, but many systems utilize more. For radio transmission, the levels may be represented by frequency, phase, amplitude levels or a combination thereof (see the sections on channel coding and modulation).

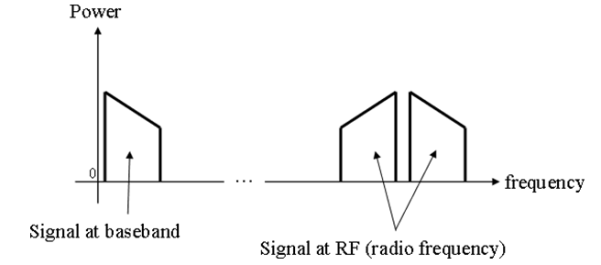

A baseband channel or low pass channel (or system, or network) is a channel (e.g., a telecommunications system) that covers a frequency range from close to or even zero Hz, i.e., DC, up to the highest signal frequency. Examples are serial cables and local area networks (LANs). Baseband signals may be used to modulate carrier frequencies.
