The Classification Results List is identical to the Classifier Classification Results List (see the section on Classifier).
This information is available for all processes.
A list of code checked signals is displayed below the list of classified signals.
Classifie CodeCheck (CCC) will process the detected signals one after the other.

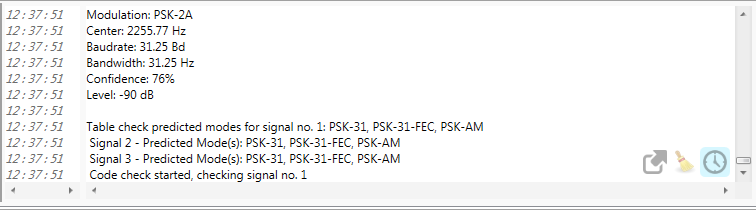

Ø For each signal the table check result will be displayed: “Table check predicted modes for signal no. n: ….”.
Ø For each signal from the table check a code check will start: “Code check started, checking signal no. n”
Ø Each code check will deliver a result when a mode is detected: “Mode detected for signal no. n” or it will end with a timeout: “Code check finished”
Ø After the complete cycle the CCC will restart: “Restart…” and “Classifier start…”
