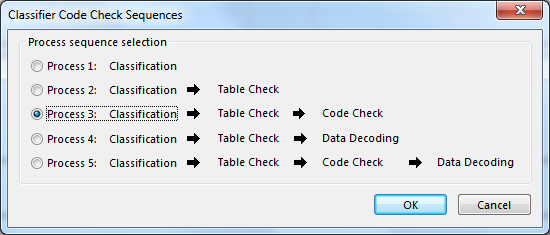

From this list, the desired mode of operation of the CCC is selected. Each process performs one or more steps to narrow down the possible candidates for eventual successful signal determination or decoding. The availability of more or less complex processes allows the user to select the process which is best suited to his purposes.
The process selected is shown in the status line.
|
Process |
Steps |
|
P1 |
Only classification is performed, but no decoding. |
|
P2 |
Classification and table check are performed, but no decoding. |
|
P3 |
Classification, table check and code check are performed, but no decoding. |
|
P4 |
Classification and table check are performed and finally the signal is decoded if a mode with an associated, valid detector was found. |
|
P5 |
Classification, table check and code check are performed and finally the signal is decoded if a mode with an associated, valid detector was found. |
