The edit menu accesses these functions:
New

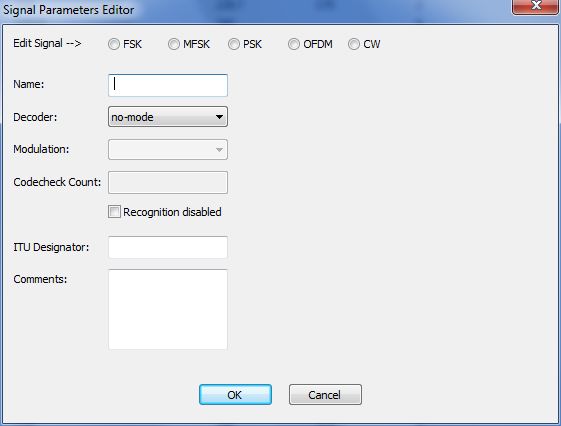

Pressing this menu item, or selecting an existing record from the CCC Editor main window by left-clicking an entry, will open a Signal Parameters Editor window.
Depending on the selection of modulation method using the Edit Signal radio buttons, the editor entry window will appear with different sets of entry fields, see the sections below. The definition of the database fields are given at the end of this section.
Enter the required parameter values for the desired signal in appropriate fields. Press OK to save the record or Cancel to cancel the operation.
In numerical fields only the number 0-9 are valid, however, the asterisk (*) can be used as a wild card to indicate that any value is valid.
|
FSK |

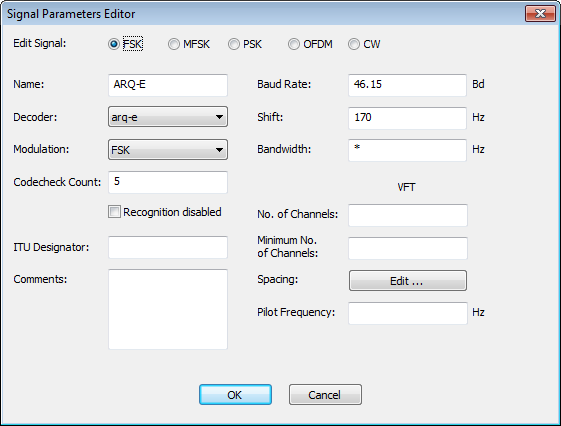

The example above shows the editor window for a FSK signal, e.g., ARQ-E.
|
|
FSK (VFT)
|

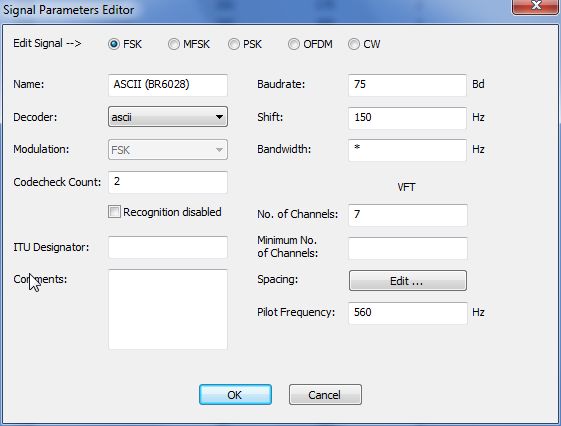

For aggregate frequency multiplexed signals, the field under the VFT (Voice Frequency Telegraphy) must also be filled, as shown below for a BR6028 seven sub-carrier signal.
|
|
MFSK |

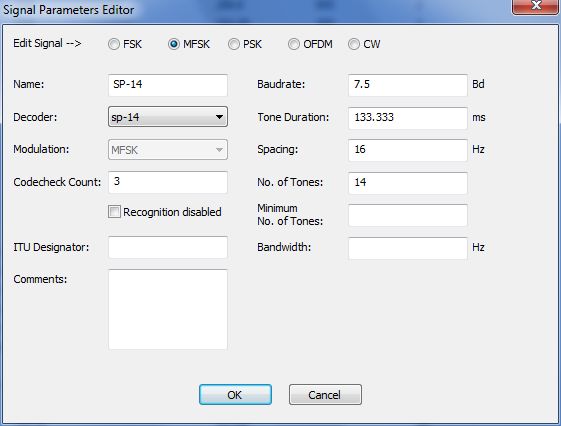

For multi-frequency shift signals the entry window looks like the example below for a SP-14 signal.
|
|
PSK |

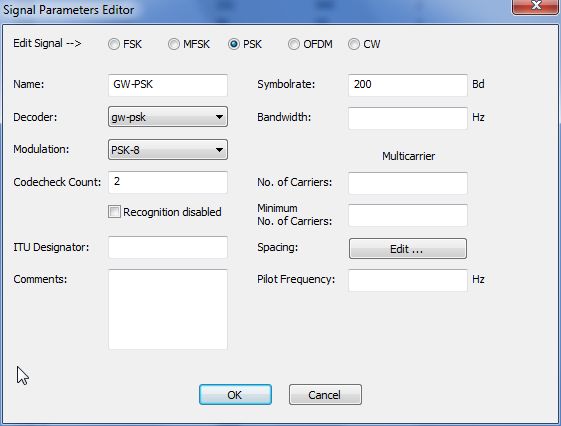

For phase shift keyed signals the entry window looks like the example below for GW-PSK.
|
|
OFDM
|

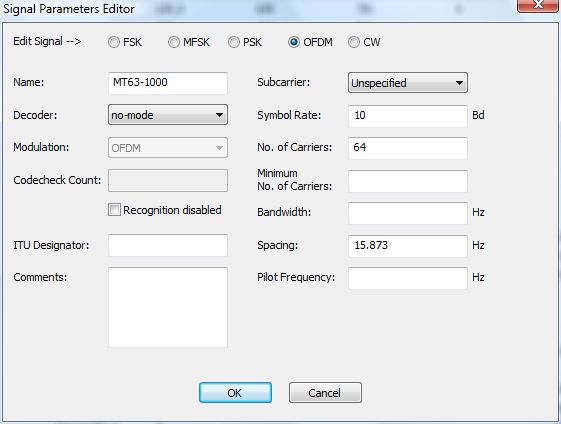

For orthogonal frequency division multiple signals the entry window looks like the example below for MT63-1000.
|
|
CW |

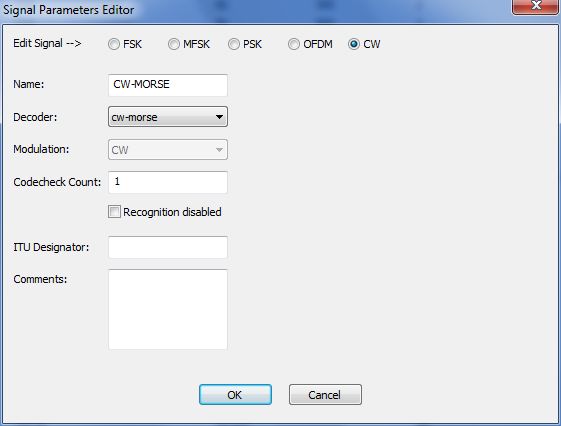

For continuous wave signals the entry window looks like the example below.
|
Delete
Delete the selected signal record(s) from the table(s).
Enable
Select the desired signal record in the list of records and press this menu item to re-enable a previously disabled signal record.
Disable
Use this function to disable a selected signal record, i.e., remove it from the CCC recognition process. The disabled record is greyed out in the list of records.
Select All
Use this funtion to select all signal records in the overview list.
