The CCC results are mainly displayed in the result window of the W-SPECTRA Operation tab:
Ø Classified signal with its parameter values
Ø Tablecheck results of each signal
Ø Codecheck results of each signal
Ø Jump to the corresponding decoder, if applicable
Ø Status messages of each code check step
Ø All classified signals with their parameters, tablecheck results and codecheck results are displayed together with the actual receiver frequency (Rx Frequency) in the “Remarks” field
Ø The parameters of the first detected signal will be displayed in the corresponding database field as well
Ø The entry will be inserted into the database automatically or by the user. The “Date & Time” is the actual timestamp of the insertion.

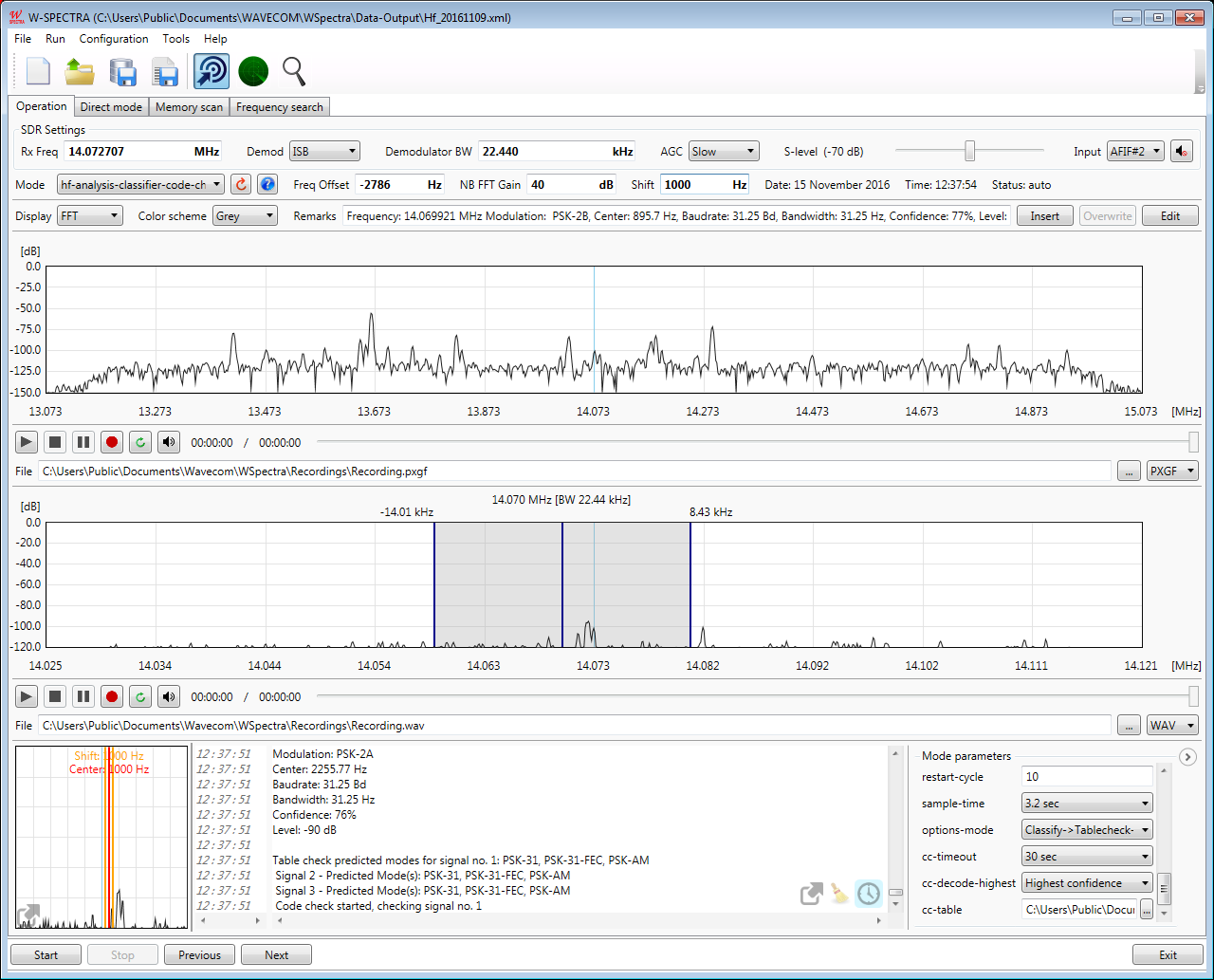

Classifier Code Check (CCC) results are displayed in the result window of the Operation tab.
